# EVS1004D

<figure><img src="https://4136413722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmX2RDC2i9lFrNIy07UxH%2Fuploads%2F01zU6sY2tznj47nu2QCs%2FSingle%20DS%20Cover-AI%20NVS.png?alt=media&#x26;token=a60f94e7-4df5-4e29-a57e-e039417900c4" alt=""><figcaption></figcaption></figure>

## <mark style="color:$primary;">Overview</mark>

{% columns %}
{% column width="58.333333333333336%" %}

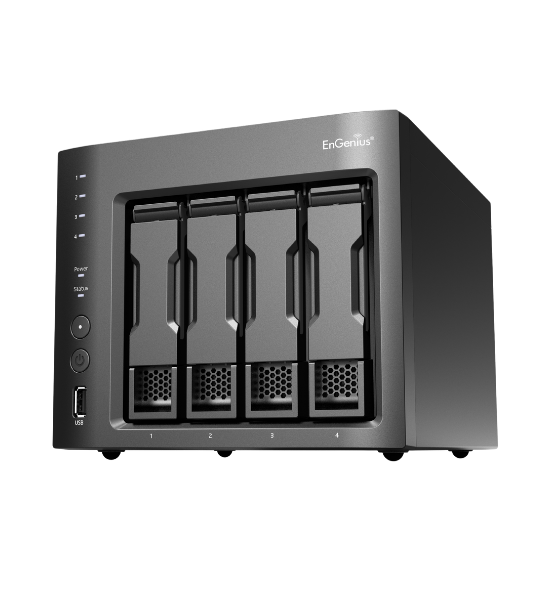

The EVS1004D is a compact 4-bay tower AI-NVS designed to transform legacy ONVIF/RTSP cameras into intelligent surveillance systems. Featuring GPU-powered Edge AI processing and Cloud AI integration, it delivers context-aware monitoring with intelligent incident detection across all connected cameras. Enterprise-grade RAID 1/5/6 storage ensures high-availability recording and uninterrupted data protection. Cloud-managed with smart search and timeline navigation capabilities, the EVS1004D provides enterprise intelligence in limited-space environments without requiring camera replacement.
{% endcolumn %}

{% column width="41.666666666666664%" %}

<figure><img src="https://4136413722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmX2RDC2i9lFrNIy07UxH%2Fuploads%2FpGjUd1Xw7S207lkVqEh8%2FEVS1004D.png?alt=media&#x26;token=235888fb-498c-4359-a7fb-f5c254fcebe7" alt=""><figcaption></figcaption></figure>
{% endcolumn %}
{% endcolumns %}

## <mark style="color:$primary;">Features & Benefits</mark>

{% columns %}
{% column %}

* Cloud Dashboard Management and Mobile App monintoring anywhere
* GPU-Powered Edge AI Processing and Cloud AI integration
  {% endcolumn %}

{% column %}

* Connect ONVIF/RTSP of all 3rd party cameras
* 4 Bays drives for 3.5" or 2.5" HDD
* RAID 1/5/6
  {% endcolumn %}
  {% endcolumns %}

## <mark style="color:$primary;">Technical Specifications</mark>

<table><thead><tr><th width="250">System</th><th></th></tr></thead><tbody><tr><td>Max 3rd-Party Cameras</td><td>16 cameras</td></tr><tr><td>Camera Resolution</td><td>FHD, 4MP, 5MP, 4K</td></tr><tr><td>Camera Interface</td><td>ONVIF Profile S, RTSP, EnGenius</td></tr><tr><td>RAID</td><td>RAID 1/5/6</td></tr><tr><td>Storage Retention</td><td>24/7 seamless recording and retention</td></tr><tr><td>Max AI Empower</td><td>2 cameras</td></tr><tr><td>Max EnGenius Cameras (Storage)</td><td>30 EnGenius cameras</td></tr></tbody></table>

<table><thead><tr><th width="250">Hardware</th><th></th></tr></thead><tbody><tr><td>Processor</td><td>Intel Elkhart Lake x6211E</td></tr><tr><td>Memory</td><td>8GB</td></tr><tr><td>Flash</td><td>16GB</td></tr><tr><td>Security</td><td>TPM v2.0</td></tr><tr><td>Drive Interface</td><td>SATA 3.0 x 4</td></tr><tr><td>Networking Interface</td><td>10GbE RJ45 x 1, 1GbE RJ-45 x 1</td></tr><tr><td>Display</td><td>HDMI 1.4b x 1</td></tr><tr><td>USB Port</td><td>3.0 Type A x 4, 2.0 Type A x 1</td></tr><tr><td>FAN Speed Control</td><td>Yes</td></tr><tr><td>Thermal Sensor</td><td>System x 1, CPU x 1</td></tr><tr><td>Buzzer</td><td>Yes</td></tr><tr><td>Button</td><td>Power, Function</td></tr><tr><td>LED Indicator</td><td>Power x 1, Function x 1, HDD x 4</td></tr><tr><td>Power Supply</td><td>DC12V@7.5A</td></tr><tr><td>Max. Power Consumption</td><td>140W</td></tr><tr><td>Ambient Operating Temperature</td><td>0~50°C (32~122°F)</td></tr><tr><td>Ambient Operating Humidity</td><td>10~85% RH</td></tr></tbody></table>

<table><thead><tr><th width="250">Advanced AI Analytics</th><th></th></tr></thead><tbody><tr><td>People Detection and Tracking</td><td>Event detection, Smart Motion Search, People Counting</td></tr><tr><td>Vehicle Detection and Tracking</td><td>Event detection, Smart Motion Search, Vehicle Counting</td></tr><tr><td>EnGenius Cloud AI</td><td>Natural Language Search, Contextual AI Analysis, SD-Alert</td></tr></tbody></table>

<table><thead><tr><th width="250">Mechanical</th><th></th></tr></thead><tbody><tr><td>Kensington Slot</td><td>Yes</td></tr><tr><td>Enclosure Material</td><td>Aluminium alloy, Polycarbonate</td></tr><tr><td>Dimensions (L x W x H)</td><td>179.6 x 227.5 x 157.0 mm</td></tr><tr><td>Weight</td><td>2.647Kg</td></tr></tbody></table>

<table><thead><tr><th width="250">Management Software</th><th></th></tr></thead><tbody><tr><td>Web Browser</td><td>Chrome, Safari, Edge</td></tr><tr><td>Mobile App</td><td>Cloud To-Go on iOS and Android</td></tr></tbody></table>

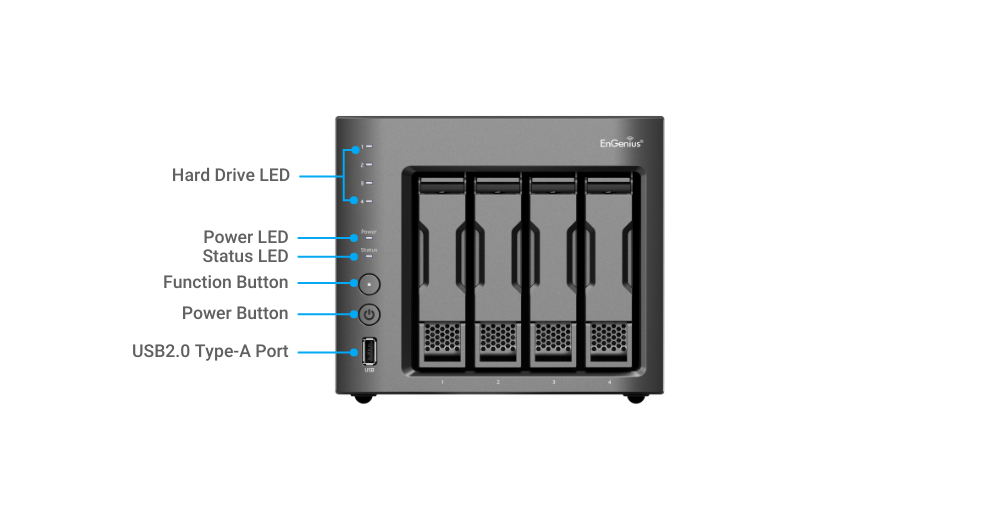

## <mark style="color:$primary;">Hardware Overview</mark>&#x20;

<figure><img src="https://4136413722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmX2RDC2i9lFrNIy07UxH%2Fuploads%2Fs7t2hohRkaSZTQoDGEv1%2FEVS1004D-%20Front.png?alt=media&#x26;token=1f4bd2b0-ed58-4259-abbc-bba07e13564b" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4136413722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmX2RDC2i9lFrNIy07UxH%2Fuploads%2F411KWXctKa8gTSKO0p5F%2FEVS1004D-%20Back.png?alt=media&#x26;token=7c206840-4134-45a2-90df-01bfaa4a3e93" alt=""><figcaption></figcaption></figure>

> <sup><sub>Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. These limits are designed to provide reasonable
> &#x20;protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
> &#x20;instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
> &#x20;to correct the interference at his/her own expense. Prior to installing any surveillance equipment, it is your responsibility to ensure the installation is in compliance with local, state and federal video
> &#x20;and audio surveillance and privacy laws.<sub></sup>    <sup><sub>    </sup><sup><sub><mark style="color:$info;">Version 1.1 03032026<mark style="color:$info;"><sub></sup>        &#x20;
